CNC Milling Bushings: Precision and Efficiency in Custom Manufacturing

1. Introduction

In complex industrial equipment, many bushings are more than simple cylinders; they often feature keyways, oil holes, flat surfaces, or irregular structures. For the production of such non-standard parts, CNC Milling technology plays a crucial role. For industrial buyers and procurement managers, understanding how CNC milling ensures the efficiency and accuracy of bushings is key to making informed purchasing decisions and reducing the total cost of ownership. This article will delve into the unique advantages of CNC milling in custom bushing manufacturing and the core value it brings to procurers.

2. What Is CNC Milling in Bushing Manufacturing?

CNC milling is a precision machining process controlled by a computer program. Unlike turning, where the workpiece rotates and the tool is stationary, milling involves a high-speed rotating tool that precisely cuts a stationary workpiece through multi-axis (e.g., 3-axis, 4-axis, 5-axis) movements.

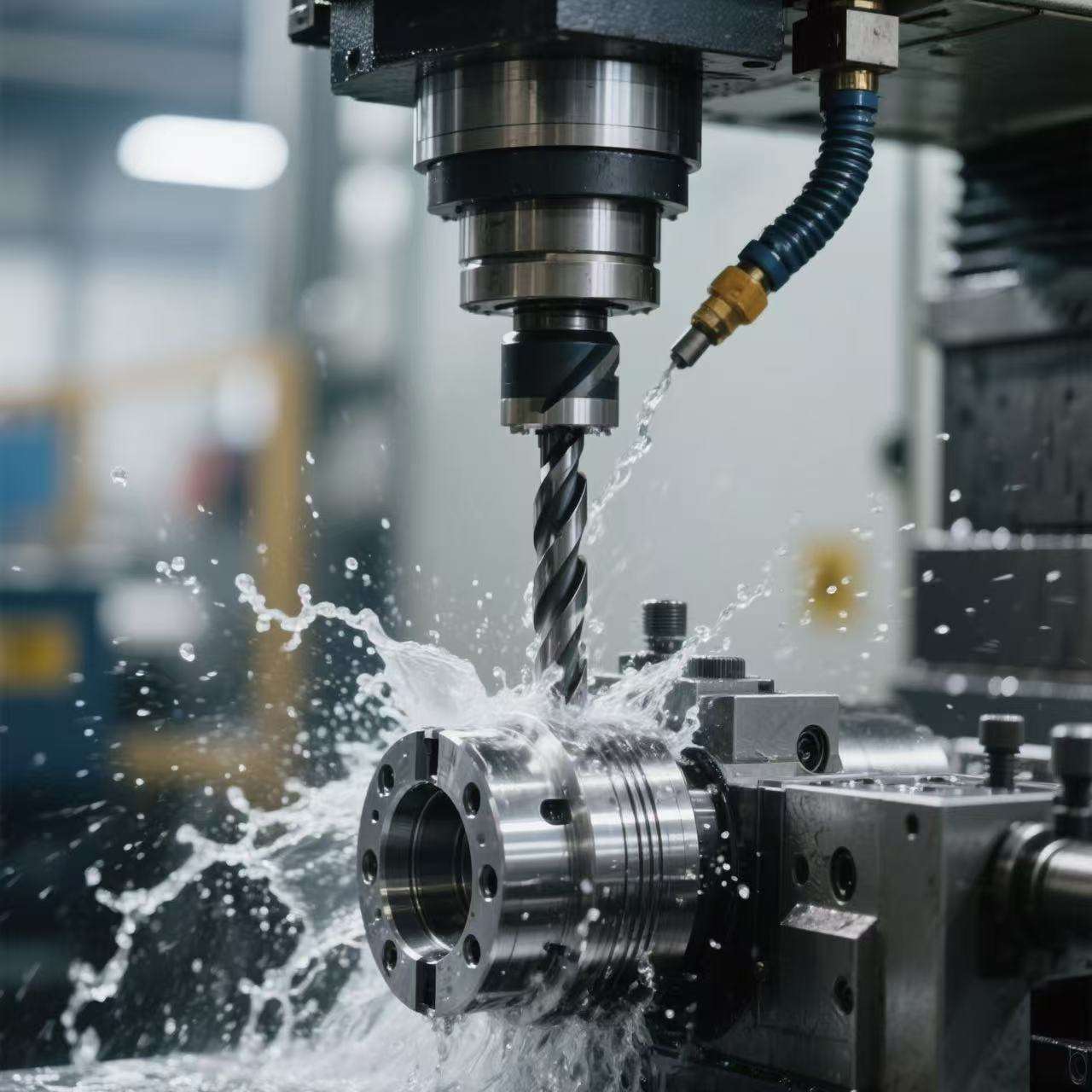

In bushing manufacturing, after a part has been formed into its basic cylindrical shape via CNC turning, CNC milling is necessary to machine non-symmetrical features such as flats, keyways, threaded holes, or complex contours. It overcomes the limitations of turning, which can only produce revolved features, making it an indispensable process for manufacturing complex, functional bushings.

3. Advantages of CNC Milling for Bushings

Using CNC milling technology to process bushings offers several significant advantages for industrial buyers:

• Extremely High Machining Accuracy Modern CNC milling machines can easily achieve a positioning accuracy of ±0.01mm, ensuring that critical dimensions like keyway width, hole positions, and surface flatness meet the strictest drawing requirements.
• Powerful Versatility CNC milling can machine almost any complex geometric shape. Whether it’s a keyway for transmitting torque, an oil groove for lubrication, or threaded holes for fastening, multi-axis milling can complete these features efficiently in a single setup, greatly expanding the design possibilities for bushings.
• Significant Improvement in Production Efficiency Many advanced CNC milling centers are equipped with Automatic Tool Changers (ATC) and multi-station fixtures, allowing for “single-setup, multi-face machining.” This reduces errors and time loss from repeated positioning, significantly shortening the production cycle.
• Stable and Reliable Consistency Under the precise control of a computer program, CNC milling ensures that every bushing in a large batch has the exact same dimensions and quality, providing buyers with highly reliable and consistent products.

For buyers, these advantages directly translate into fewer rejects, lower rework costs, and faster project timelines.

4. Common Materials for CNC Milled Bushings

CNC milling is suitable for a variety of industrial materials, which buyers can select based on their application needs:

5. Tolerance & Surface Finishing

• Tolerance Standards Bushings machined by CNC milling also adhere to international standards like ISO 2768 (general tolerances) and ISO 286 (fit tolerances). Precise milling ensures the fit accuracy between holes and shafts, meeting assembly requirements for various working conditions.
• Subsequent Surface Treatments After milling, various surface treatments can be applied to enhance performance:
  • Heat Treatment: Quenching or nitriding steel parts to increase surface hardness.
  • Anodizing: Used on aluminum parts to enhance corrosion resistance and surface hardness, and can be colored.
  • Chrome Plating / Black Oxide: Used on steel parts to provide rust protection and wear resistance.

6. Applications of CNC Milled Bushings

Bushings with milled features play a key role in major industrial sectors:

• Automotive Industry: Positioning bushings in suspension systems and keyway bushings in transmission devices require milling for precise assembly.
• Heavy Machinery: The oil holes and mounting flats on hydraulic cylinder clevises of excavators and turntable bases of cranes are completed by milling.
• Aerospace: Irregularly shaped bushings in lightweight aluminum alloy structural parts have extremely high requirements for precision and reliability.
• General Machinery: Functional bushings in packaging and textile equipment have mounting holes and positioning slots that ensure stable operation.

This makes CNC milled bushings not just components, but strategic enablers of performance across industries.

7. Procurement Considerations

For procurement managers, partnering with a manufacturer with strong CNC milling capabilities is crucial.

• What to Focus on During Procurement:
  • Drawings & Material Requirements: Ensure the provided drawings are clear and complete, with all milled features and their tolerances clearly marked.
  • Supplier’s Inspection Capabilities: Inquire if they are equipped with precision inspection tools like CMMs and micrometers to verify the accuracy of complex features.
  • Minimum Order Quantity (MOQ) & Lead Times: Confirm the production schedule with the supplier based on project needs.
• Collaboration Advice: Prioritize manufacturers with extensive CNC milling experience in your industry. They will have a better understanding of your specific requirements for part functionality and precision.

8. Conclusion

CNC milling technology endows the production of custom bushings with unprecedented flexibility and precision, making it key to manufacturing high-performance bushings with complex functional features. For procurement managers, understanding the value of CNC milling and choosing a supplier with advanced milling capabilities means obtaining more reliable parts, thereby reducing long-term equipment maintenance costs.

If you are looking for custom bushing solutions that can meet your complex design needs, please contact our expert team today. We are happy to provide professional technical support and a rapid quotation for your project. Partner with us to ensure precision, reliability, and cost-efficiency in your next procurement project.
